Quick Details

  • Product Type: Pectin centrifuge
  • Place of Origin: China (Mainland)
  • Brand Name: Zonelink
  • Model Number: DHY/DHC250/270/300/400/500/550/750
  • Voltage: As Customer Requirement
  • Power(W): 11000
  • Weight: 1000KG
  • Dimension(L*W*H): 1500*900*1500mm
  • Certification: SGS,ISO, GMP, CE
  • Warranty: 1 year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Rotating Speed: 6200 r/min
  • Separation Factor: 10500
  • Throughput: 15 Tons/h
  • Discharge: Automatic
  • Material: Stainless
  • application: Pectin slag
  • type: liquid solid separation

Packaging & Delivery

Packaging Details Exporting wooden case
Delivery Time 30 days

 15ton per hour capacity automatic discharage PLC Pectin slag disc centrifuge separator

Product Description
 Pectin Application:

Main Feature:

Disc centrifuge can realize liquid-liquid-solid separation. it can be operated manually or automatically or remotely. This machine is widely used for many industries, such as dairy, beverage, pharmacy, chemials, petrol, metallurgy and biology, etc.





Application:

1. Beverage: Wine, tea, coffee and beer.

2. Juices: Vegetable juices, various kinds of fruit juices

3. Vegetable oil: Coconut oil, colza oil, cotton seed oil, core oil, palm oil, soybean oil, peanut oil, rice oil, sesame oil, safflower oil

4. Animal oil:  Fish oil and other animal oil.

5. Mineral oil: Fuel oil, diesel oil, lubrication oil, transformer oil and waste oils.

6. Dairy Milk:  Milk degrease

7. Fermented liquids: Bacterial or fungi mass after fermentation



Working principle:

Disc centrifuge the bowl will be driven by the main motor by the friction clutch and screw gear pair to rotate highly around the main shaft. Stock liquid flows from the center charging inlet on the top to the bottom through the charging pipe. And then passes through disc seats to the bowl's space. The bigger gravity solid phase particles in the stock liquid is settled down to the bowl's wall by the centrifugal force and then under the control of the side bowl drained out of the residue outlet but liquid phase is fully settled down to the bowl wall by the centrifugal force field and then under the control of the side bowl it is drained out of the residue outlet but liquid phase is fully settled down to the center along the discs to drain out by the centripetal pump.







Technical Parameter



Model

Bowl Speed

(rpm)

Capacity

(Per Hour/L)

Running Load

(Watts)

Dimensions, Overall (mm)

Width

Front-to-Back

Height

DHY/DHYC250

8500

500-800

4.0

850

850

1200

DHY/DHYC270

7300

1000

4.0

950

950

1200

DHY/DHYC300

7150

1500

5.5

1025

1300

1300

DHY/DHYC360

7056

2000-3000

7.5

1500

1100

1500

DHY/DHYC400

7038

3000

7.5

1500

1100

1550

DHY/DHYC500

6600

5000-8000

15.5

1772

1500

1855

DHY/DHYC550

6200

8000-15000

18.5

1970

1560

1970

DHY/DHYC730

4900

50000-80000

55.0

2580

1980

2340



Disc centrifuge bowl:

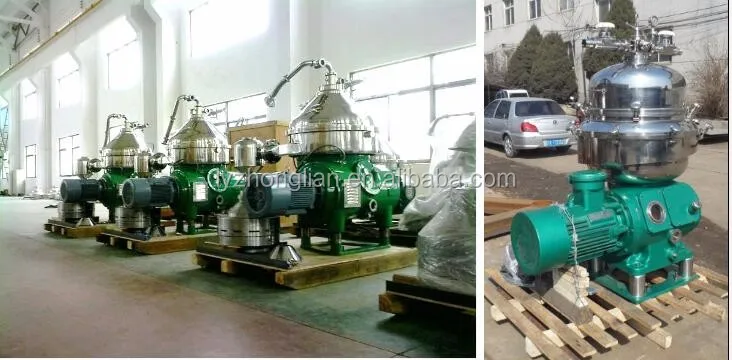

Disc centrifuge spot goods:

We can also supply the whole line equipment for the  Pectin processing. details contact with
lily wang
skype : lilybest123
whatsapp: 86 18624192286

Packaging & Shipping

 Disc centrifuge packing




Company Information



Liaoyang Zhonglian Pharmaceutical Machinery Co.,Ltd. ,belongs to ZHONGLINAN international Group. We are the professional manufacturer of pharmaceutical equipment and food equipment, which including separating equipment, filling equipment, packing equipment, dryer and relevant complete set of production line equipment.



Group was founded in 2001, the headquarters is located in Liaoyang city, Liaoning province. The factory covers an area of ten thousand square meters, production workshop seven thousand square meters. The factory own a professional r&d team and after-sales service team. In the same industry take the lead through the ISO9001:2008 international quality system certification, and get the certification of SGS, CE, GMP and so on.



At present, our products have been exported to the United States, Mexico, New Zealand, South Korea,Australia,Turkey,Japan,Thailand,Malaysia,Singapore,Indonesia,Canada,Kenya,Seychelles,Italy,Iran,Venezuela,Peru,India,Russia,Denmark,Spain,Finland,Greece,Colombia,and so on more than 30 countries. Our aim is saving your valuable time and cost, providing you with the workable solution!
